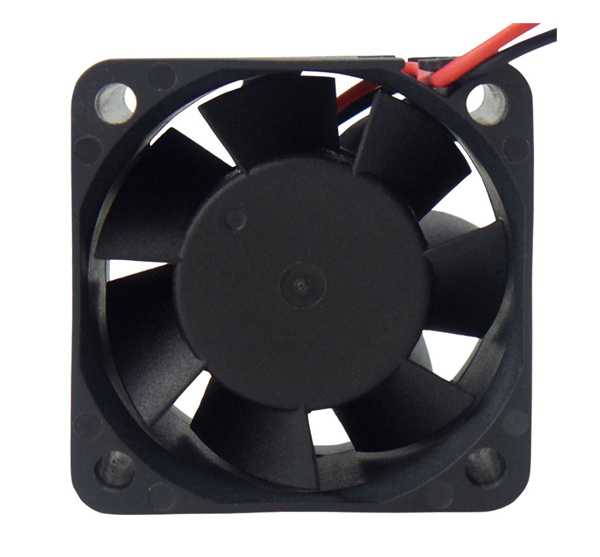

散熱風(fēng)扇 JHX4028
4028 尺寸/Size 40X40X28mm DC AxialFlowFan
★Dimensions Drawing(外觀圖） ★Characteristic Curves(特性曲線)
|
★Specifications（規(guī)格 |
|||||||||
|
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓（V) |
Operation Voltage 電壓范圍 |
Current
電流（A) |
Iuput Power 功率（W) |
Speed 轉(zhuǎn)速 （RPM) |
AirFlow 風(fēng)量 （CFM） |
Static Pressure 靜壓（mm-H2O) |
Niose Level 噪音（dB-A） |
|
JHX4028X05M |
Sleeve Ball |
5 |
4.5～5.5 |
0.32 |
1.60 |
7000 |
9.56 |
6.03 |
28.3 |
|
JHX4028X05L |
0.25 |
1.25 |
5500 |
6.12 |
3.50 |
23.8 |
|||
|
JHX4028X12VH |
Sleeve Ball |
12 |
10.8～13.2 |
0.65 |
7.801 |
16000 |
24.32 |
16.21 |
61.0 |
|
JHX4028X12HH |
0.28 |
3.36 |
10000 |
15.20 |
10.05 |
37.6 |
|||
|
JHX4028X12H |
0.16 |
1.92 |
8500 |
12.50 |
8.18 |
32.4 |
|||
|
JHX4028X12M |
0.10 |
1.20 |
7000 |
9.56 |
6.03 |
28.3 |
|||
|
JHX4028X12L |
0.08 |
0.96 |
5500 |
6.12 |
3.50 |
23.8 |
|||
|
JHX4028X24VH |
Sleeve Ball |
24 |
18.0～26.5 |
0.31 |
7.44 |
16000 |
24.32 |
16.21 |
61.0 |
|
JHX4028X24HH |
0.09 |
2.16 |
10000 |
15.20 |
10.05 |
37.6 |
|||
|
JHX4028X24M |
0.08 |
1.92 |
8500 |
12.50 |
8.18 |
32.4 |
|||
|
JHX4028X24L |
0.05 |
1.20 |
7000 |
9.56 |
6.03 |
28.3 |
|||
