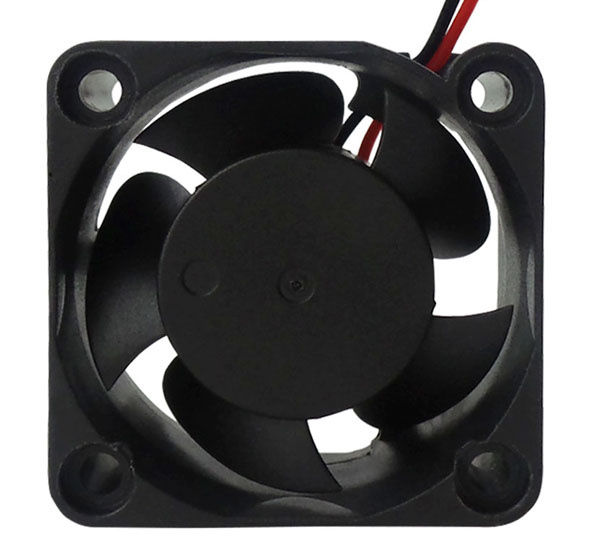

散熱風(fēng)扇 JHX4020
4020 尺寸/Size 40X40X20mm DC AxialFlowFan
★Dimensions Drawing(外觀圖） ★Characteristic Curves(特性曲線)
|
★Specifications（規(guī)格 |
|||||||||
|
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓（V) |
Operation Voltage 電壓范圍 |
Current
電流（A) |
Iuput Power 功率（W) |
Speed 轉(zhuǎn)速 （RPM) |
AirFlow 風(fēng)量 （CFM） |
Static Pressure 靜壓（mm-H2O) |
Niose Level 噪音（dB-A） |
|
JHX4020X05H |
Sleeve Ball |
5 |
4.5～5.5 |
0.26 |
1.30 |
7500 |
8.60 |
5.58 |
33.60 |
|
JHX4020X05M |
0.20 |
1.00 |
6200 |
7.10 |
3.98 |
29.07 |
|||
|
JHX4020X05L |
0.14 |
0.70 |
5000 |
5.70 |
2.54 |
23.46 |
|||
|
JHX4020X12H |
Sleeve Ball |
12 |
10.8～13.2 |
0.15 |
1.80 |
7500 |
8.60 |
5.58 |
33.90 |
|
JHX4020X12M |
0.11 |
1.32 |
6200 |
7.10 |
3.98 |
29.07 |
|||
|
JHX4020X12L |
0.07 |
0.84 |
5000 |
5.70 |
2.54 |
23.46 |
|||
