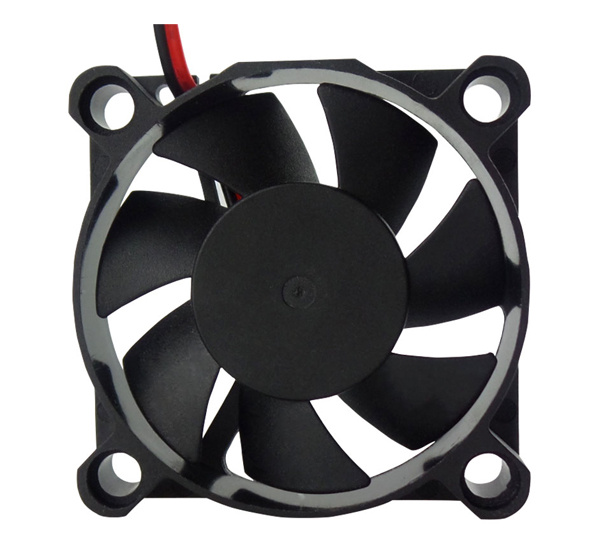

散熱風扇 JHX4510
4510 尺寸/Size 45X45X10mm DC AxialFlowFan
★Dimensions Drawing(外觀圖） ★Characteristic Curves(特性曲線)
|
★Specifications（規格 |
|||||||||
|
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓（V) |
Operation Voltage 電壓范圍 |
Current
電流（A) |
Iuput Power 功率（W) |
Speed 轉速 （RPM) |
AirFlow 風量 （CFM） |
Static Pressure 靜壓（mm-H2O) |
Niose Level 噪音（dB-A） |
|
JHX4510X05H |
Sleeve Ball |
5 |
4.5～5.5 |
0.20 |
1.00 |
6000 |
7.22 |
3.38 |
31.86 |
|
JHX4510X05M |
0.16 |
0.80 |
5000 |
5.83 |
2.42 |
27.29 |
|||
|
JHX4510X05L |
0.12 |
0.60 |
4000 |
4.50 |
1.57 |
22.06 |
|||
|
JHX4510X12H |
Sleeve Ball |
12 |
10.8～13.2 |
0.12 |
1.44 |
6000 |
7.22 |
3.38 |
31.86 |
|
JHX4510X12M |
0.10 |
1.20 |
5000 |
5.83 |
2.42 |
27.29 |
|||
|
JHX4510X12L |
0.08 |
0.96 |
4000 |
4.50 |
1.57 |
22.06 |
|||
