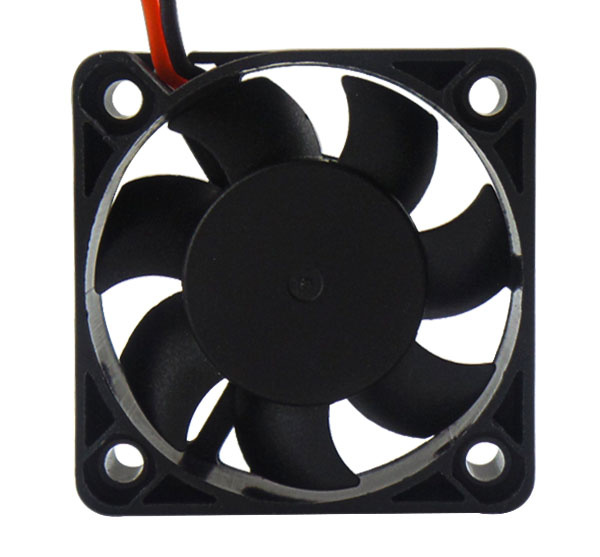

散熱風扇 JHX4010
4010 尺寸/Size 40X40X10mm DC AxialFlowFan
★Dimensions Drawing(外觀圖） ★Characteristic Curves(特性曲線)
|
★Specifications（規格 |
|||||||||
|
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓（V) |
Operation Voltage 電壓范圍 |
Current
電流（A) |
Iuput Power 功率（W) |
Speed 轉速 （RPM) |
AirFlow 風量 （CFM） |
Static Pressure 靜壓（mm-H2O) |
Niose Level 噪音（dB-A） |
|
JHX4010X05H |
Sleeve Ball |
5 |
4.5～5.5 |
0.24 |
1.20 |
6000 |
6.40 |
3.31 |
26.26 |
|
JHX4010X05M |
0.18 |
0.90 |
5400 |
5.62 |
2.91 |
24.87 |
|||
|
JHX4010X05L |
0.12 |
0.60 |
4200 |
4.48 |
2.32 |
21.13 |
|||
|
JHX4010X12H |
Sleeve Ball |
12 |
10.8～13.2 |
0.15 |
1.8 |
7000 |
7.46 |
3.86 |
29.6 |
|
JHX4010X12M |
0.10 |
1.20 |
6000 |
6.40 |
3.31 |
26.26 |
|||
|
JHX4010X12L |
0.08 |
0.96 |
5400 |
5.62 |
2.91 |
24.87 |
|||
