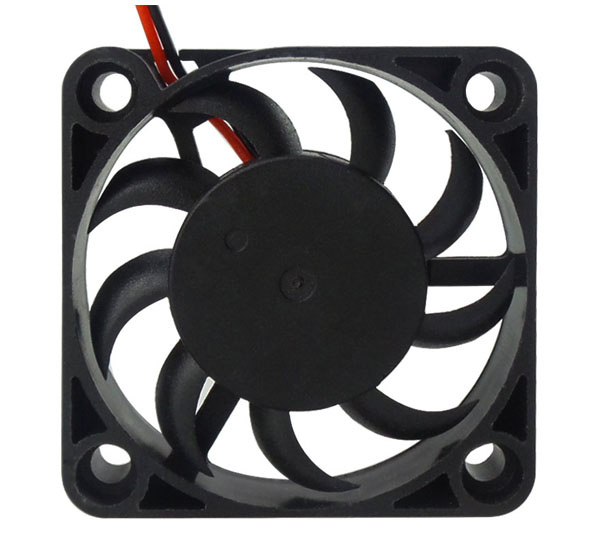

散熱風扇 JHX4007
4007 尺寸/Size 40X40X07mm DC AxialFlowFan
★Dimensions Drawing(外觀圖） ★Characteristic Curves(特性曲線)
|
★Specifications（規格 |
|||||||||
|
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓（V) |
Operation Voltage 電壓范圍 |
Current
電流（A) |
Iuput Power 功率（W) |
Speed 轉速 （RPM) |
AirFlow 風量 （CFM） |
Static Pressure 靜壓（mm-H2O) |
Niose Level 噪音（dB-A） |
|
JHX4007X05HH |
Sleeve Ball |
5 |
4.5～5.5 |
0.25 |
1.25 |
8000 |
10.58 |
5.90 |
31.6 |
|
JHX4007X05H |
0.22 |
1.10 |
7000 |
8.65 |
5.45 |
27.6 |
|||
|
JHX4007X05M |
0.18 |
0.90 |
6000 |
6.81 |
4.40 |
24.6 |
|||
|
JHX4007X05L |
0.12 |
0.60 |
4000 |
4.32 |
2.92 |
20.6 |
|||
|
JHX4007X12HH |
Sleeve Ball |
12 |
10.8～13.2 |
0.10 |
1.20 |
8000 |
10.58 |
5.90 |
31.6 |
|
JHX4007X12H |
0.08 |
0.96 |
7000 |
8.65 |
5.45 |
27.6 |
|||
|
JHX4007X12M |
0.06 |
0.72 |
6000 |
6.81 |
4.40 |
24.6 |
|||
|
JHX4007X12L |
0.04 |
0.48 |
4000 |
4.32 |
2.92 |
20.6 |
|||
