散熱風(fēng)扇 JHX8010
8010 尺寸/Size 80X80X10mm DC Axial Flow Fan

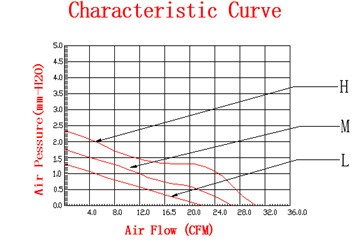

★Dimensions Drawing(外觀圖） ★Characteristic Curves(特性曲線)
|
★Specifications（規(guī)格） |
|||||||||
|
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓（V) |
Operation Voltage 電壓范圍 |
Current
電流（A) |
Input Power 功率（W) |
Speed 轉(zhuǎn)速 （RPM) |
Air Flow 風(fēng)量 （CFM） |
Static Pressure 靜壓（mm-H2O) |
Noise Level 噪音（dB-A） |
|
JHX8010X05H |
Sleeve Ball |
5 |
3.6～6.8 |
0.21 |
1.05 |
2500 |
18.11 |
1.29 |
26.4 |
|
JHX8010X12H |
12 |
6.0~13.5 |
0.25 |
3.00 |
3300 |
23.81 |
2.40 |
32.4 |
|
|
JHX8010X12M |
0.19 |
2.28 |
3000 |
21.71 |
1.81 |
30.2 |
|||
|
JHX8010X12L |
0.15 |
1.80 |
2500 |
18.11 |
1.29 |
26.4 |
|||
|
JHX8010X24H |
Sleeve Ball |
24 |
18.0～26.4 |
0.25 |
1.25 |
3300 |
23.81 |
2.40 |
32.4 |
|
JHX8010X24M |
0.17 |
0.85 |
3000 |
21.71 |
1.81 |
30.2 |
|||
|
JHX8010X24L |
0.24 |
2.88 |
2500 |
18.11 |
1.29 |
26.4 |
|||
