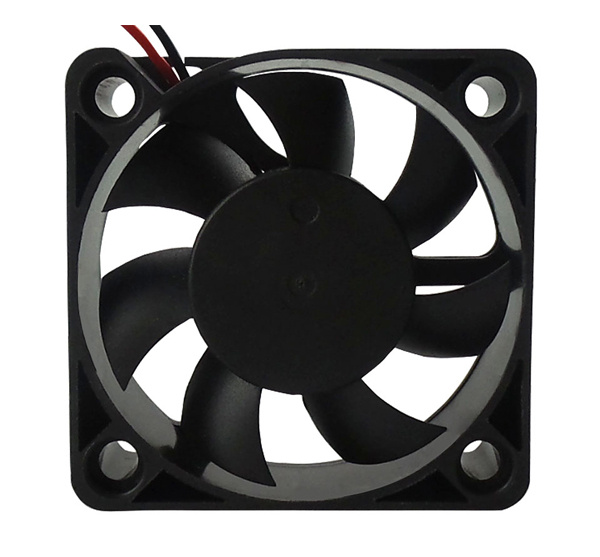

散熱風(fēng)扇 JHX5015
5015 尺寸/Size 50X50X15mm DC AxialFlowFan
★Dimensions Drawing(外觀圖） ★Characteristic Curves(特性曲線)
|
★Specifications（規(guī)格 |
|||||||||
|
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓（V) |
Operation Voltage 電壓范圍 |
Current
電流（A) |
Iuput Power 功率（W) |
Speed 轉(zhuǎn)速 （RPM) |
AirFlow 風(fēng)量 （CFM） |
Static Pressure 靜壓（mm-H2O) |
Niose Level 噪音（dB-A） |
|
JHX5015X05H |
Sleeve Ball |
5 |
4.5～5.5 |
0.30 |
1.50 |
5500 |
16.50 |
4.58 |
36.42 |
|
JHX5015X05M |
0.23 |
1.15 |
4500 |
13.94 |
3.04 |
31.74 |
|||
|
JHX5015X05L |
0.17 |
0.85 |
3500 |
10.85 |
2.25 |
29.39 |
|||
|
JHX5015X12H |
Sleeve Ball |
12 |
10.8～13.2 |
0.16 |
1.92 |
5500 |
16.50 |
4.58 |
36.42 |
|
JHX5015X12M |
0.12 |
1.44 |
4500 |
13.94 |
3.04 |
31.74 |
|||
|
JHX5015X12L |
0.08 |
0.96 |
3500 |
10.85 |
2.25 |
29.39 |
|||
