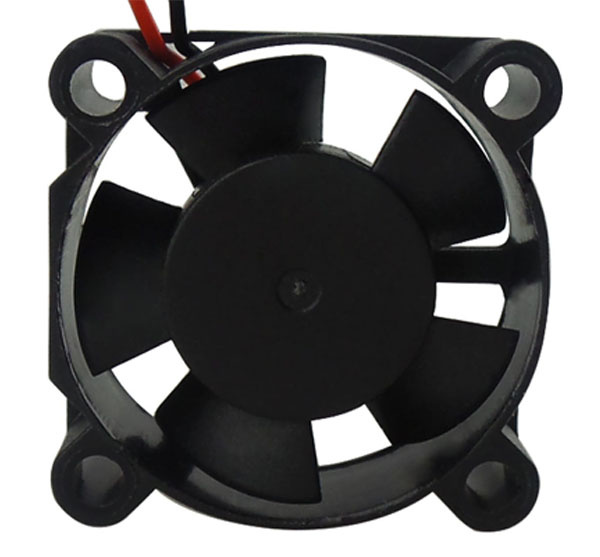

散熱風(fēng)扇 JHX3010

3010 尺寸/Size 30X30X10mm DC AxialFlowFan
★Dimensions Drawing(外觀圖) ★Characteristic Curves(特性曲線)
★Specifications(規(guī)格 |
|||||||||
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓(V) |
Operation Voltage 電壓范圍 |
Current
電流(A) |
Iuput Power 功率(W) |
Speed 轉(zhuǎn)速 (RPM) |
AirFlow 風(fēng)量 (CFM) |
Static Pressure 靜壓(mm-H2O) |
Niose Level 噪音(dB-A) |
JHX3010X05H |
Sleeve Ball |
5 |
4.5~5.5 |
0.20 |
1.00 |
9500 |
4.23 |
4.47 |
28.5 |
JHX3010X05M |
0.16 |
0.80 |
8000 |
3.56 |
3.76 |
23.4 |
|||
JHX3010X05L |
0.14 |
0.70 |
5500 |
2.45 |
2.59 |
20.1 |
|||
JHX3010X12H |
Sleeve Ball |
12 |
10.8~13.2 |
0.12 |
1.44 |
9500 |
4.23 |
4.47 |
38.5 |
JHX3010X12M |
0.10 |
1.20 |
8000 |
3.56 |
3.76 |
23.4 |
|||
JHX3010X12L |
0.08 |
0.96 |
5500 |
2.45 |
2.59 |
20.1 |
