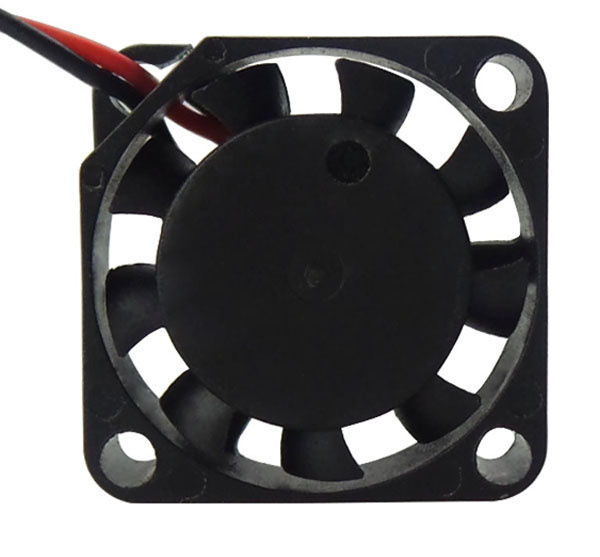

直流風(fēng)扇JHX2006
2006 尺寸/Size 20X20X06mm DC AxialFlowFan
★Dimensions Drawing(外觀圖） ★Characteristic Curves(特性曲線)
|
★Specifications（規(guī)格 |
|||||||||
|
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓（V) |
Operation Voltage 電壓范圍 |
Current
電流（A) |
Iuput Power 功率（W) |
Speed 轉(zhuǎn)速 （RPM) |
AirFlow 風(fēng)量 （CFM） |
Static Pressure 靜壓（mm-H2O) |
Niose Level 噪音（dB-A） |
|
JHX2006S05H |
Sleeve |
5 |
4.5～5.5 |
0.22 |
1.1 |
15000 |
1.41 |
5.22 |
39.65 |
|
JHX2010S05M |
0.12 |
0.6 |
12000 |
1.02 |
2.69 |
32.2 |
|||
|
JHX2010S05L |
0.08 |
0.4 |
9000 |
0.77 |
2.02 |
24.16 |
|||
|
JHX2010S12H |
Sleeve |
12 |
10.8～13.2 |
0.12 |
1.44 |
15000 |
1.41 |
5.22 |
39.65 |
|
JHX2010S12M |
0.1 |
1.2 |
12000 |
0.02 |
2.69 |
32.2 |
|||
|
JHX2010S12L |
0.08 |
0.96 |
9000 |
0.77 |
2.02 |
24.16 |
|||
