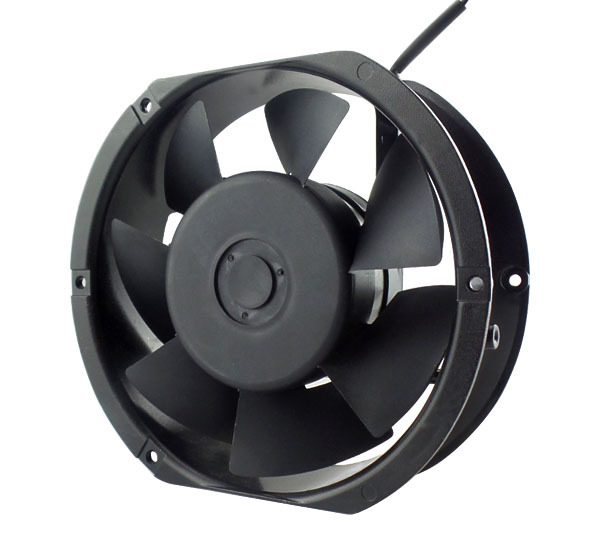

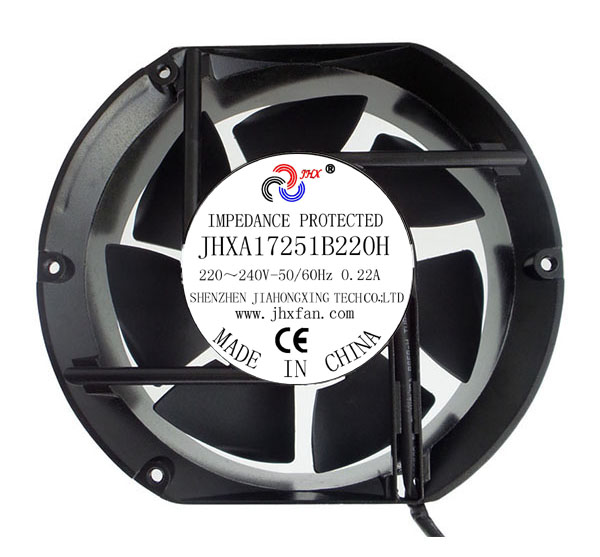

交流風扇 JHX17251
17251 尺寸/Size 172X150X51mm AC Axial Flow Fan

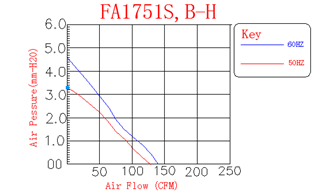

★Dimensions Drawing(外觀圖） ★Characteristic Curves(特性曲線)
|
★Specifications（規(guī)格） |
|||||||||
|
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓（V) |
Freq 頻率（Hz) |
Current
電流（A) |
Input Power 功率（W) |
Speed 轉速 （RPM) |
Air Flow 風量 （CFM） |
Static Pressure 靜壓（mm-H2O) |
Noise Level 噪音（dB-A） |
|
JHX17251X1H |
Sleeve/Ball |
110 |
50/60 |
0.48/0.45 |
38/36 |
2600/3000 |
170/196 |
11.5/14.0 |
49/56 |
|
JHX17251X1M |
Sleeve/Ball |
110 |
50/60 |
0.33/0.30 |
28/27 |
2400/2600 |
155/170 |
7.5/9.7 |
45/49 |
|
JHX17251X1L |
Sleeve/Ball |
110 |
50/60 |
0.15/0.13 |
21/20 |
2100/2400 |
137/155 |
3.0/3.9 |
39/45 |
|
JHX17251X2H |
Sleeve/Ball |
220 |
50/60 |
0.25/0.22 |
38/36 |
2600/3000 |
170/196 |
11.5/14.0 |
49/56 |
|
JHX17251X2M |
Sleeve/Ball |
220 |
50/60 |
0.19/0.15 |
28/27 |
2400/2600 |
155/170 |
7.5/9.7 |
45/49 |
|
JHX17251X2L |
Sleeve/Ball |
220 |
50/60 |
0.14/0.13 |
21/20 |
2100/2400 |
137/155 |
3.0/3.9 |
39/45 |
|
JHX17251X3H |
Sleeve/Ball |
380 |
50/60 |
0.14/0.13 |
38/36 |
2600/3000 |
170/196 |
11.5/14.0 |
49/56 |
