交流風(fēng)扇 JHX12038
12038 尺寸/Size 120X120X38mm AC Axial Flow Fan

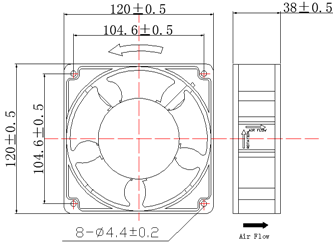

★Dimensions Drawing(外觀圖） ★Characteristic Curves(特性曲線)
|
★Specifications（規(guī)格） |
|||||||||
|
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓（V) |
Freq 頻率（Hz) |
Current
電流（A) |
Input Power 功率（W) |
Speed 轉(zhuǎn)速 （RPM) |
Air Flow 風(fēng)量 （CFM） |
Static Pressure 靜壓（mm-H2O) |
Noise Level 噪音（dB-A） |
|
JHX12038X1H |
Sleeve/Ball |
110 |
50/60 |
0.24/0.22 |
23.0/21.0 |
2600/3000 |
80/91 |
6.80/8.50 |
42/46 |
|
JHX12038X1M |
Sleeve/Ball |
110 |
50/60 |
0.15/0.14 |
17.0/14.0 |
2400/2700 |
73/83 |
5.10/6.80 |
39/42 |
|
JHX12038X1L |
Sleeve/Ball |
110 |
50/60 |
0.11/0.10 |
10.0/9.0 |
2100/2400 |
66/72 |
3.20/5.10 |
35/39 |
|
JHX12038X2H |
Sleeve/Ball |
220 |
50/60 |
0.24/0.22 |
23.0/21.0 |
2600/3000 |
80/91 |
6.80/8.50 |
42/46 |
|
JHX12038X2M |
Sleeve/Ball |
220 |
50/60 |
0.15/0.14 |
17.0/14.0 |
2400/2700 |
73/83 |
5.10/6.80 |
39/42 |
|
JHX12038X2L |
Sleeve/Ball |
220 |
50/60 |
0.11/0.10 |
10.0/9.0 |
2100/2400 |
33/72 |
3.20/5.10 |
35/39 |
|
JHX12038X3H |
Sleeve/Ball |
380 |
50/60 |
0.07/0.06 |
23.0/21.0 |
2600/3000 |
80/91 |
6.80/8.50 |
42/46 |
