散熱風扇 JHX8020
8020 尺寸/Size 80X80X20mm DC Axial Flow Fan

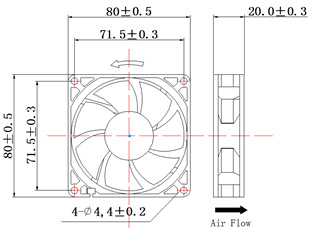

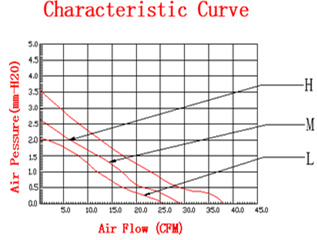

★Dimensions Drawing(外觀圖） ★Characteristic Curves(特性曲線)
|
★Specifications（規(guī)格） |
|||||||||
|
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓（V) |
Operation Voltage 電壓范圍 |
Current
電流（A) |
Input Power 功率（W) |
Speed 轉(zhuǎn)速 （RPM) |
Air Flow 風量 （CFM） |
Static Pressure 靜壓（mm-H2O) |
Noise Level 噪音（dB-A） |
|
JHX8020X12H |
Sleeve Ball |
12 |
10.8~13.2 |
0.23 |
2.76 |
3500 |
41.30 |
7.61 |
38.0 |
|
JHX8020X12M |
0.17 |
2.04 |
3000 |
36.03 |
5.35 |
32.0 |
|||
|
JHX8020X12L |
0.13 |
1.56 |
2500 |
30.50 |
4.05 |
26.0 |
|||
|
JHX8020X24H |
Sleeve Ball |
24 |
21.6～26.4 |
0.21 |
5.04 |
3500 |
41.30 |
7.61 |
38.0 |
|
JHX8020X24M |
0.14 |
3.36 |
3000 |
36.03 |
5.35 |
32.0 |
|||
|
JHX8020X24L |
0.12 |
2.88 |
2500 |
30.50 |
4.05 |
26.0 |
|||
